MEISHILE DC 12V Linear Actuator 350mm Stroke Linear Drive Electric Motor Linear Motor Controller 115mm/s Speed Electric Hydraulic Cylinder Linear Actuator

Technical Parameters:

Input Voltage: 12V DC
Maximum Load: 80N ~ 1200N
Speed: 5mm/s ~ 115mm/s

Material: Aluminum alloy
Color:  Silver

Working Temperature： -20℃~60℃
Waterproof Level：IP54

Low noise design with a noise level of about 55dB.

Product features: drive other objects to push, pull, rise, drop.

Please do not disassemble the machine.

Product Description:
An electric actuator is an electric drive that transforms the rotary motion of an electric motor into the linear reciprocating motion of an actuator. It can be used in various simple or complex processes as an execution machine to achieve remote control, centralized control or automatic control.

• We sell this linear actuator with strokes from 50mm to 1200mm.

If you need to buy an actuator with other strokes: 1. you can visit our shop. 2. you can contact us and we will recommend it for you.

• Way of working:

When the linear actuator is connected to the power supply in the positive direction, the linear actuator will extend. When the linear actuator is connected to the power supply/battery/adapter/other DC12V in the reverse direction, the linear actuator will retract.

You can be equipped with wired or remote controller

• Working principle:

- linear actuator each side contains a travel limit switch. When the telescopic rod runs to the top or to the top, it will automatically disconnect the electricity.

- The linear actuator will not idle. Cut off the power, it can be stop at any position, with self-locking function.

- The linear actuator is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.

- The linear actuator is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.

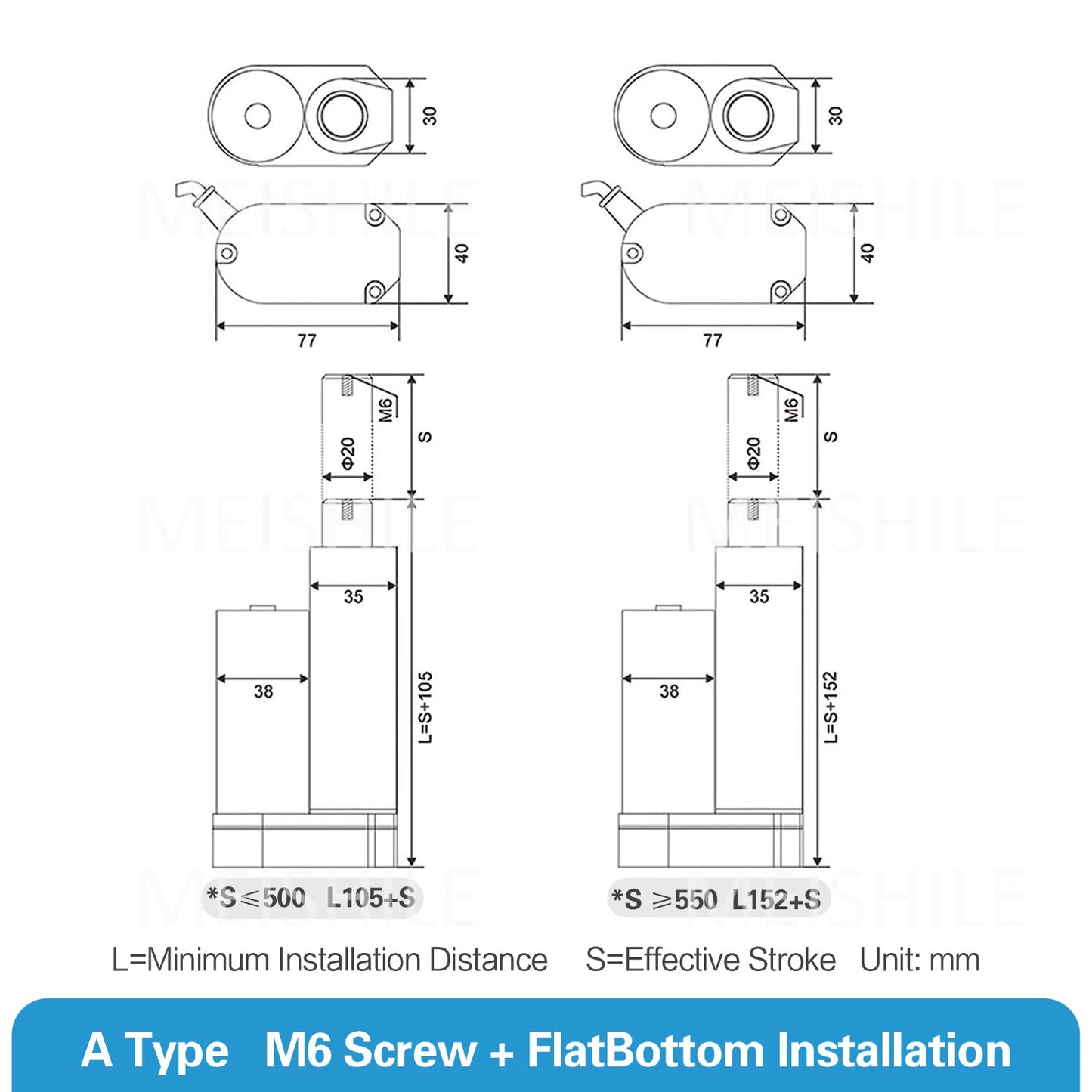

• Stroke length introduction:

250mm Stroke, Retracted Length= 355mm, Extended Length= 605mm

300mm Stroke, Retracted Length= 405mm, Extended Length= 705mm

350mm Stroke, Retracted Length= 455mm, Extended Length= 805mm

400mm Stroke, Retracted Length= 505mm, Extended Length=905mm

450mm Stroke, Retracted Length= 555mm, Extended Length= 960 mm



Unit：mm

• Purchase additional accessories to be able to linear actuators for free angle applications.

（If you need to purchase additional accessories, you can contact us to make recommendations for you.）

• Multiple details of the linear actuator.

• Some application scenarios for linear actuators

Main uses: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, electric medical bed, electric sofa, electric booth lift rod, industrial electric lift system, camera stand, head shadow machine, wedding system, cameras and more.



Thrust/pull forces:

The thrust/pull forces of our linear actuators are

80N 115mm per second, 100N 92mm per second,

120N 56mm per second, 150N 69mm per second,

180N 42mm per second, 200N 45mm per second,

250N 28mm per second, 300N 30mm per second,

450N 14mm per second, 500N 20mm per second,

700N 15mm per second, 900N 9mm per second,

1200N 5mm per second.



Force/Thrust/Power

-For example, 300N 30mm per second means:

300N push/pull force can push/pull 30kg weight items. The speed is 30mm per second.

Please choose the appropriate push/pull force and speed.



How to protect your linear actuator:

1. Please use the 12V DC power adapter.（Same voltage as linear actuator）
2. Please do not exceed the rated load.
3. All the stroke linear actuator have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, waterproof level：IP54, but the actuator not completely waterproof.

We sell this linear actuator with strokes from 50mm to 1200mm.

If you need to buy an actuator with other strokes: 1. you can visit our shop. 2. you can contact us and we will recommend it for you.
